Human-in-the-Loop LangGraph Agents in Angular

This is how to pause a LangGraph agent in Angular for human approval before it runs a high-stakes tool, using LangGraph's interrupt() and the <chat-approval-card> composition from @threadplane/chat.

The example is a refund agent: it drafts a refund, then stops and asks an operator to approve, edit, or cancel before any charge is reversed.

Everything below is running code from the cockpit example at cockpit/langgraph/interrupts. Clone the repo, run nx serve cockpit-langgraph-interrupts-angular, and follow along.

#Goals

• Wire a refund-approval gate using LangGraph's interrupt() primitive.
• Render the approval dialog in Angular with the <chat-approval-card> composition.
• Resume, reject, or edit-then-resume — with a distinct path for each.

#When to use an interrupt

Most tool calls don't need approval. Reads, searches, and lookups can run unattended. Reach for an interrupt when a tool does something the operator wouldn't want to undo by hand: moves money, sends a customer-facing message, deletes a record, or triggers a deploy.

Two practical reasons: it caps the cost of a misfiring agent looping over a write API, and it gives the operator a checkpoint to catch a wrong action before it lands.

#The architecture

Three pieces:

• LangGraph backend. A node calls interrupt({ kind: 'refund_approval', amount, customer_id, reason }) instead of calling Stripe directly. The run pauses and the thread checkpointer persists the pending interrupt until something resumes it.
• @threadplane/langgraph adapter. Surfaces the pending interrupt on an agent.interrupt() signal. agent.submit({ resume }) writes a value back to the paused graph.
• @threadplane/chat UI. <chat-approval-card> reads the pending interrupt, opens a native <dialog> modal, and emits 'approve' | 'edit' | 'cancel'.

The LangGraph node doesn't know how the UI renders, and the Angular component doesn't know which graph it's paused inside. That lets you reuse one approval dialog across multiple agents.

#Scaffold

Three files.

# graph.py — cockpit/langgraph/interrupts/python/src/graph.py
from langgraph.types import interrupt
from pydantic import BaseModel, Field

class RefundDraft(BaseModel):
    customer_id: str = Field(description="Customer id, e.g. cus_a8x2k.")
    amount: float = Field(description="Refund amount in USD.")
    reason: str = Field(description="One sentence: why it's justified.")

extractor = ChatOpenAI(model="gpt-5-mini").with_structured_output(RefundDraft)

async def draft_refund(state: RefundState) -> dict:
    draft = await extractor.ainvoke(
        [SystemMessage(content="Extract the refund fields."), *state["messages"]]
    )
    ack = await llm.ainvoke([system_message, *state["messages"]])
    return {
        "messages": [ack],
        "customer_id": draft.customer_id,
        "amount": draft.amount,
        "reason": draft.reason,
    }

def request_approval(state: RefundState) -> dict:
    decision = interrupt({
        "kind": "refund_approval",
        "amount": state["amount"],
        "customer_id": state["customer_id"],
        "reason": state["reason"],
    })
    if not isinstance(decision, dict) or not decision.get("approved"):
        return {"decision_approved": False}
    edited = decision.get("amount")
    return {
        "decision_approved": True,
        "amount": float(edited) if edited is not None else state["amount"],
    }

// app.config.ts
import { provideAgent } from '@threadplane/langgraph';
import { provideChat } from '@threadplane/chat';

export const appConfig: ApplicationConfig = {
  providers: [
    provideAgent({ apiUrl: environment.langGraphApiUrl }),
    provideChat({}),
  ],
};

// interrupts.component.ts
import {
  ChatComponent,
  ChatApprovalCardComponent,
  type ChatApprovalAction,
} from '@threadplane/chat';
import { agent } from '@threadplane/langgraph';

@Component({
  selector: 'app-interrupts',
  standalone: true,
  imports: [ChatComponent, ChatApprovalCardComponent, CurrencyPipe],
  template: `
    <chat [agent]="agent" />

    <chat-approval-card
      [agent]="agent"
      matchKind="refund_approval"
      title="Refund approval required"
      [showEdit]="true"
      (action)="onAction($event)"
    >
      <ng-template #body let-payload>
        <div>Amount <strong>{{ payload.amount | currency }}</strong></div>
        <div>Customer <code>{{ payload.customer_id }}</code></div>
      </ng-template>
    </chat-approval-card>
  `,
})
export class InterruptsComponent {
  protected readonly agent = agent({ assistantId: 'interrupts' });

  protected onAction(action: ChatApprovalAction): void {
    if (action === 'approve') {
      this.agent.submit({ resume: { approved: true } });
    } else if (action === 'cancel') {
      this.agent.submit({ resume: { approved: false } });
    }
    // 'edit' reveals an inline editor in the body slot; see below.
  }
}

#The round trip

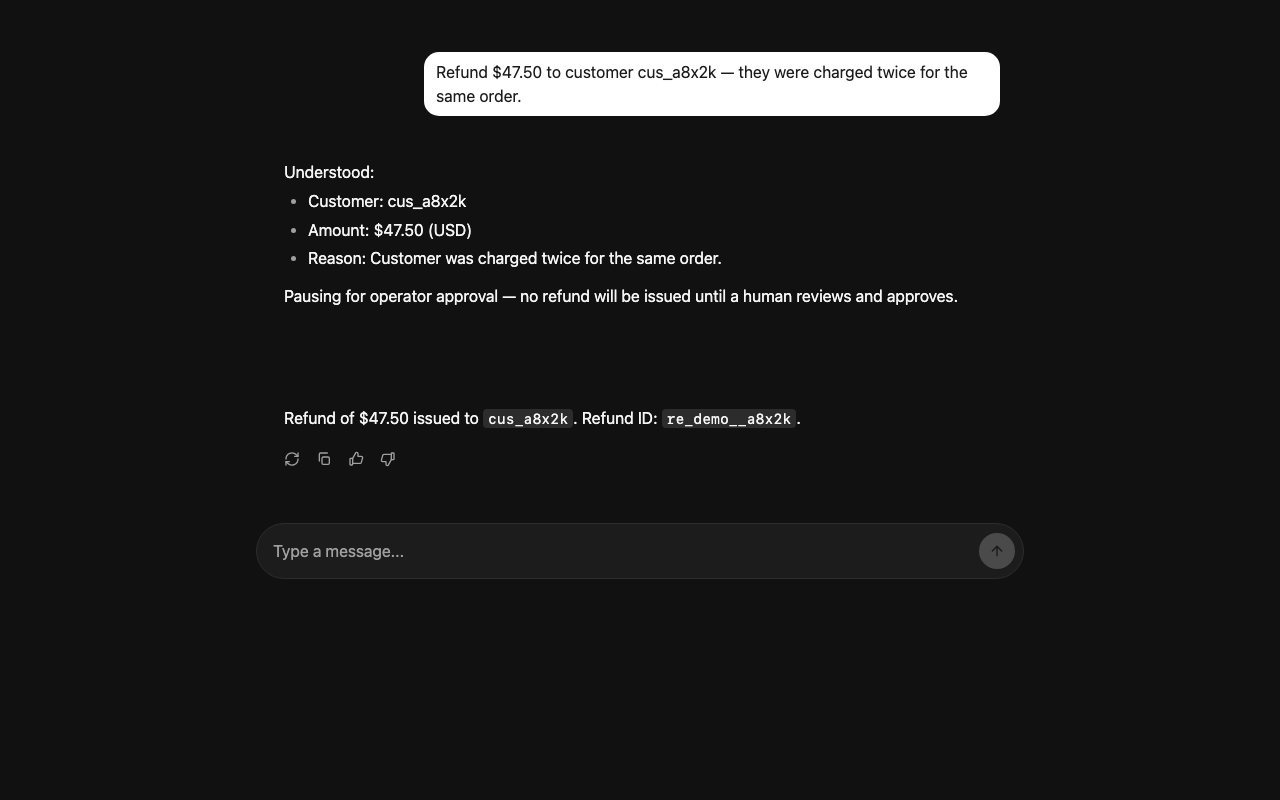

1. User: "Refund $47.50 to customer cus_a8x2k — they were charged twice."
2. draft_refund extracts amount, customer_id, reason into state and posts an acknowledgement.
3. request_approval calls interrupt(). The graph pauses; the checkpointer persists the payload.
4. The adapter exposes it on agent.interrupt().

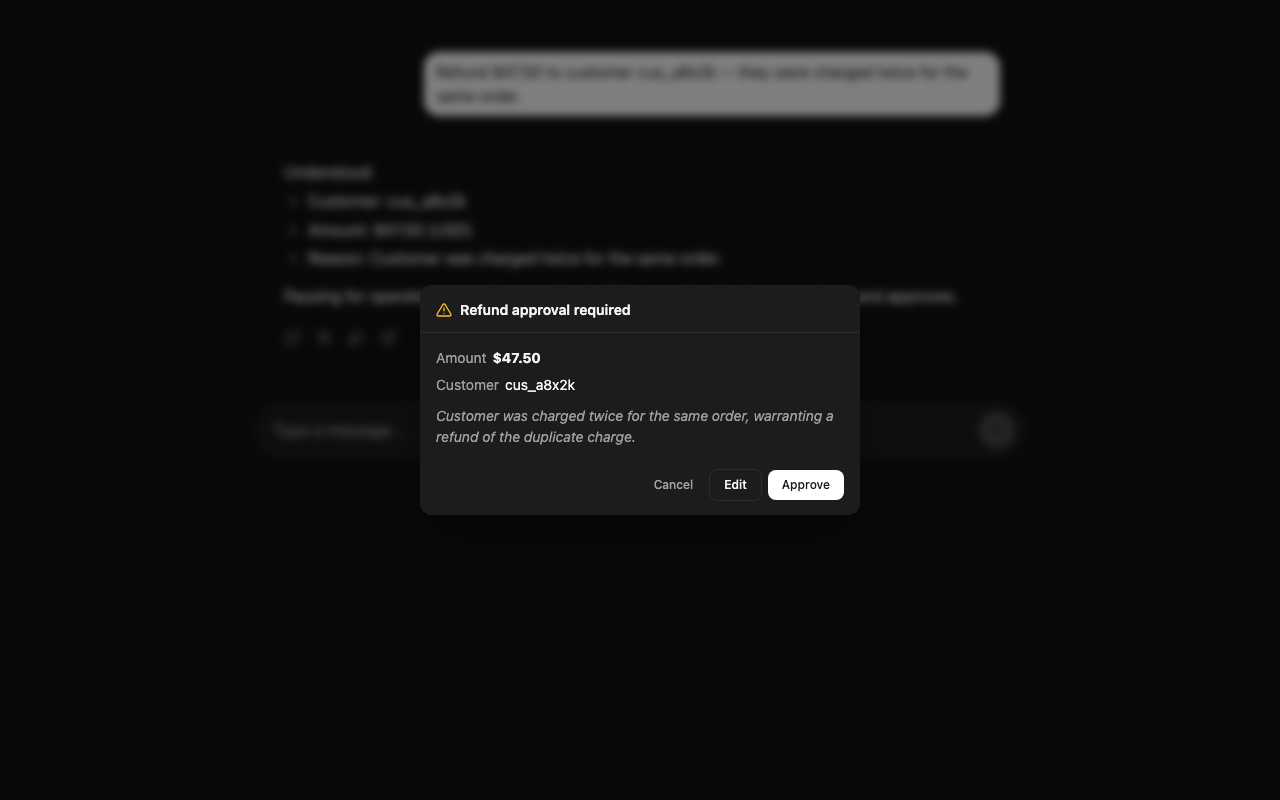

5. <chat-approval-card> matches the kind and calls dialog.showModal().
6. The operator clicks Approve.
7. The handler runs agent.submit({ resume: { approved: true } }).
8. request_approval re-runs; interrupt() returns { approved: true } instead of pausing.
9. The graph continues to issue_refund and finishes.

It's one thread and one persisted state. If the operator closes the tab and returns later, the interrupt is still pending.

#Production patterns

#Idempotency

interrupt() re-executes the node on resume. Side effects before the call have already run; side effects after run again on resume. Put the write (the Stripe refund.create) on the resumed side, and pass an idempotency key through state so a double-click doesn't issue two refunds.

#Audit trail

Log who approved, when, and what payload they saw — in the action handler, before agent.submit:

protected async onAction(action: ChatApprovalAction): Promise<void> {
  if (action === 'approve') {
    await this.audit.record({
      actor: this.currentUser(),
      payload: this.agent.interrupt()?.value,
    });
    this.agent.submit({ resume: { approved: true } });
  }
}

#What not to interrupt

Interrupt on writes the operator wouldn't want to undo by hand — money movement, customer-facing messages, destructive deletes. If you can undo it with a script in under a minute, let the agent run.

#Next

The next post covers durable threads, so the conversation and any pending interrupt survive a reload or a different device.
